Windshield wiper blades should be inspected for wear or cracking. See Maintenance Schedule for more information. Replacement blades come in different types and are removed in different ways.

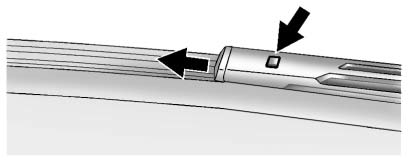

To replace the wiper blade assembly: 1. Pull the windshield wiper arm away from the windshield. 2. Press the button in the middle of the wiper arm connector and pull the wiper
blade away from the arm connector. For the proper size and type see Maintenance Replacement Parts . Backglass Wiper Blade To replace the backglass wiper blade: 1. Pull the wiper blade assembly away from the backglass. The backglass wiper blade will not lock in a vertical position so care should
be used when pulling it away from the vehicle. The vehicle is equipped with an acoustic windshield. If you ever have to have
the windshield replaced be sure to get an acoustic windshield so you will continue
to have the benefits an acoustic windshield can provide.Wiper Blade Replacement
3. Install the new wiper blade and make sure the wiper blade locks into place.
2. Rotate the wiper blade assembly, hold the wiper arm in position, and push the
blade away from the wiper arm.
3. Replace the wiper blade.
4. Return the wiper arm and blade assembly to the rest position on the glass.Windshield Replacement
