Buick Enclave manuals

Buick Enclave: Repair Instructions

HVAC CONTROL MODULE REPLACEMENT

Buick Enclave. HVAC - Manual

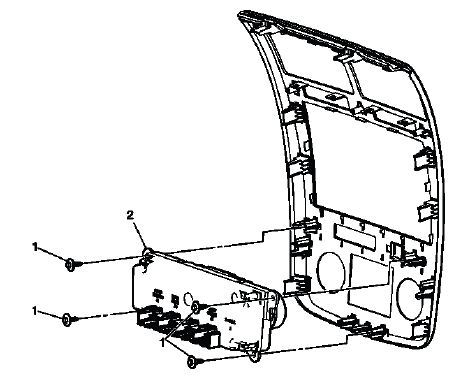

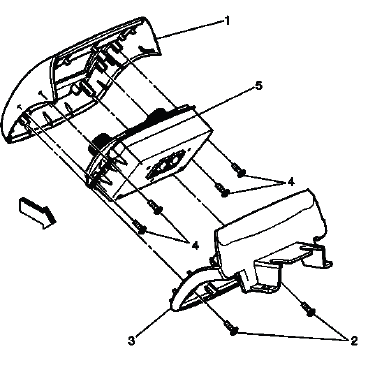

Fig. 5: Identifying HVAC Control Module

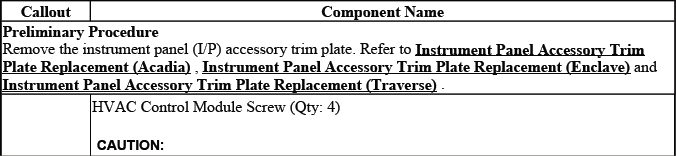

HVAC Control Module Replacement

Buick Enclave. HVAC - Manual

Buick Enclave. HVAC - Manual

TEMPERATURE VALVE ACTUATOR REPLACEMENT - RIGHT SIDE

Buick Enclave. HVAC - Manual

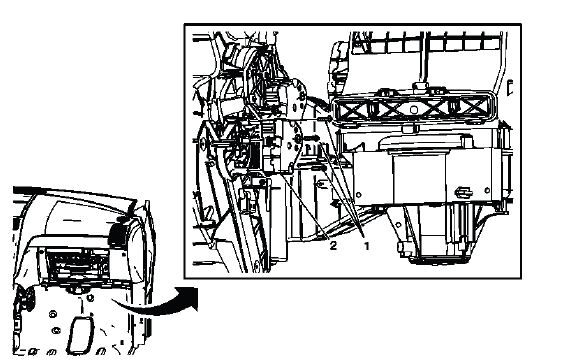

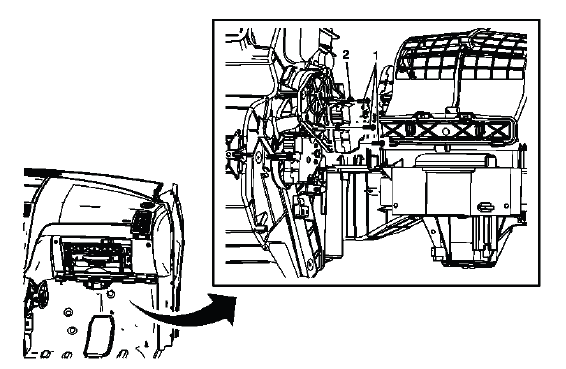

Fig. 6: Identifying Air Temperature Valve Actuator - Right Side

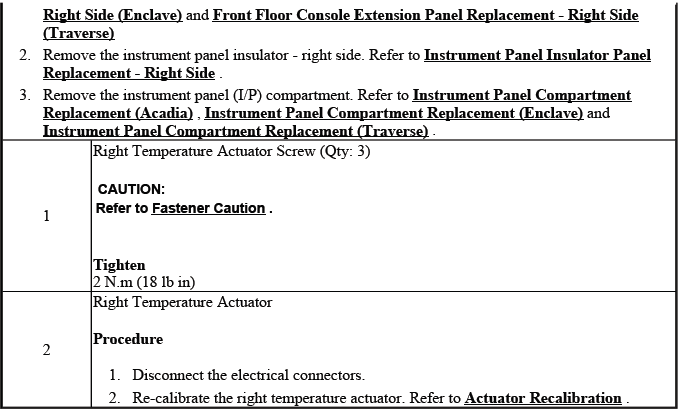

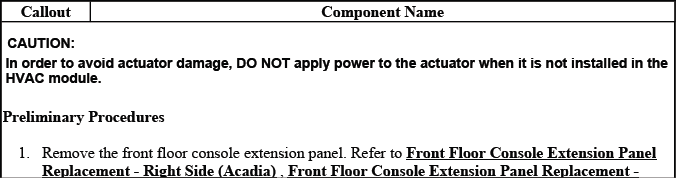

Temperature Valve Actuator Replacement - Right Side

Buick Enclave. HVAC - Manual

Buick Enclave. HVAC - Manual

MODE VALVE ACTUATOR REPLACEMENT

Buick Enclave. HVAC - Manual
Fig. 7: Identifying Mode Valve Actuator

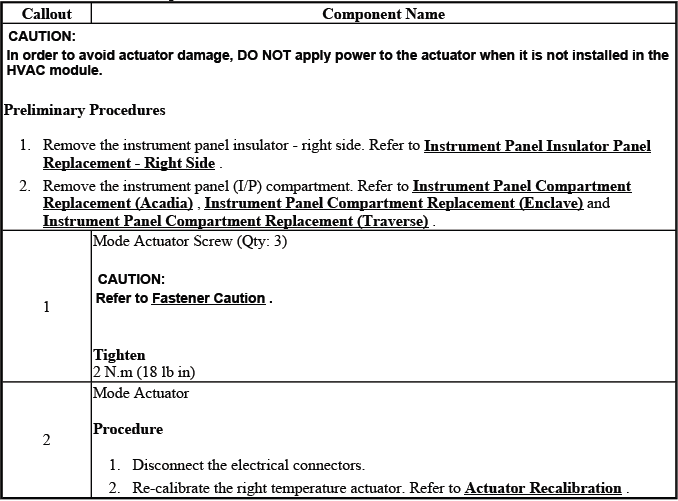

Mode Valve Actuator Replacement

Buick Enclave. HVAC - Manual

AIR INLET VALVE ACTUATOR REPLACEMENT

Buick Enclave. HVAC - Manual

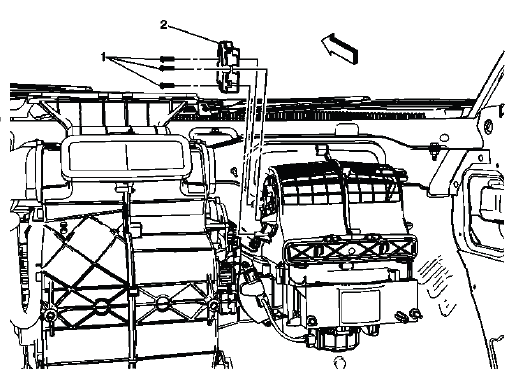

Fig. 8: Air Inlet Valve Actuator

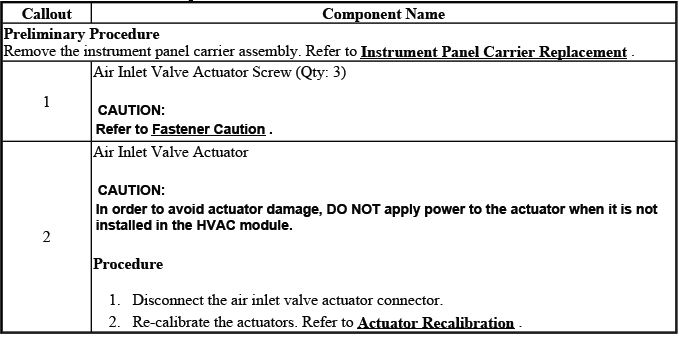

Air Inlet Valve Actuator Replacement

Buick Enclave. HVAC - Manual

AUXILIARY HEATER AND AIR CONDITIONING CONTROL MODULE REPLACEMENT

Buick Enclave. HVAC - Manual
Fig. 9: View Of Auxiliary Heater & Air Conditioning Control Modules

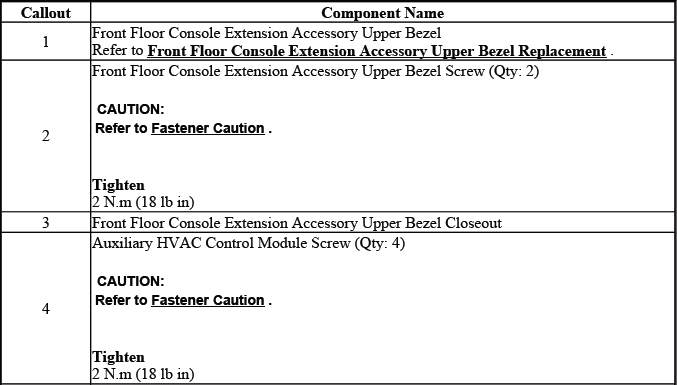

Auxiliary Heater and Air Conditioning Control Module Replacement

Buick Enclave. HVAC - Manual

Buick Enclave. HVAC - Manual

AUXILIARY TEMPERATURE VALVE ACTUATOR REPLACEMENT

Buick Enclave. HVAC - Manual

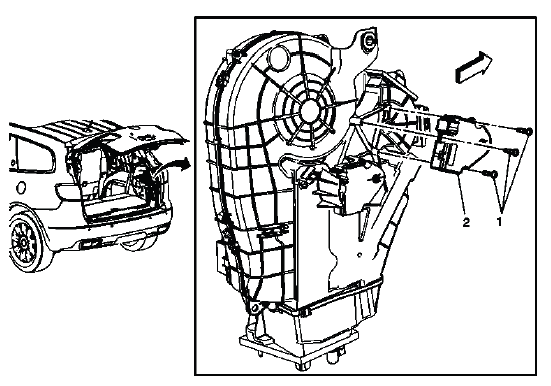

Fig. 10: Identifying Auxiliary Temperature Valve Actuator

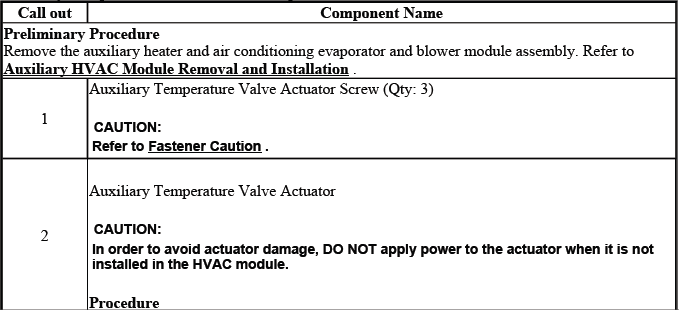

Auxiliary Temperature Valve Actuator Replacement

Buick Enclave. HVAC - Manual

Buick Enclave. HVAC - Manual

AUXILIARY MODE VALVE ACTUATOR REPLACEMENT

Buick Enclave. HVAC - Manual

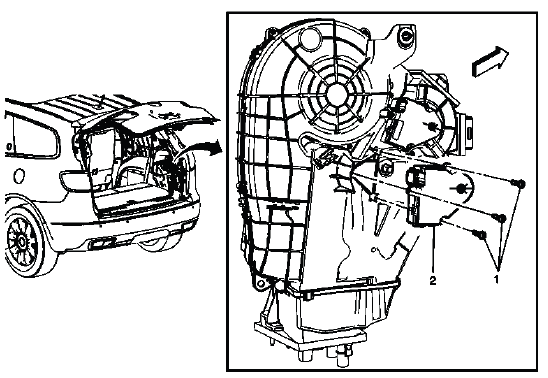

Fig. 11: Auxiliary Temperature Valve Actuator

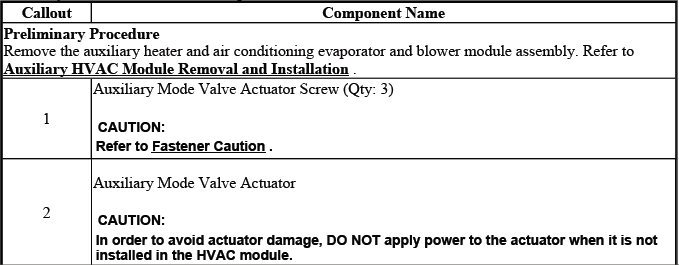

Auxiliary Mode Valve Actuator Replacement

Buick Enclave. HVAC - Manual

Buick Enclave. HVAC - Manual
