Buick Enclave: Tachometer. Fuel Gauge. Engine Coolant Temperature Gauge
Tachometer
The tachometer displays the engine speed in revolutions per minute (rpm).
Fuel Gauge
Metric

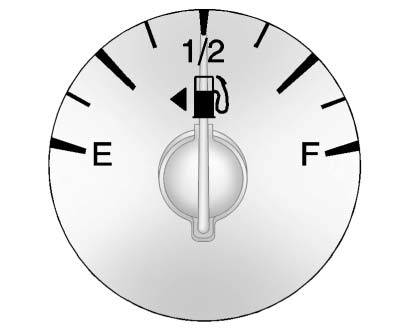

English
When the ignition is on, the fuel gauge shows about how much fuel the vehicle
has left in the fuel tank.
An arrow on the fuel gauge indicates the side of the vehicle the fuel door is
on.
The gauge will first indicate empty before the vehicle is out of fuel, but the
vehicle's fuel tank should be filled soon.
When the fuel tank is low on fuel, the FUEL LEVEL LOW message appears on the
Driver Information Center (DIC). For more information see Fuel System Messages .
Here are some situations that can occur with the fuel gauge. None of these indicate
a problem with the fuel gauge.
► At the gas station, the fuel pump shuts off before the gauge reads full.
► It takes a little more or less fuel to fill up than the fuel gauge indicated.
For example, the gauge may have indicated the tank was half full, but it actually
took a little more or less than half the tank's capacity to fill the tank.
► The gauge moves a little while turning a corner or speeding up.
► The gauge goes back to empty when the ignition is turned off.

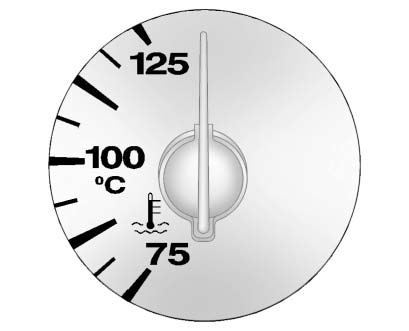

Engine Coolant Temperature Gauge
Metric
English
This gauge shows the engine coolant temperature. Under normal driving conditions
the gauge will read 100°C (210°F) or less.
If the gauge pointer is near 125°C (260°F), the engine is too hot.
It means that the engine coolant has overheated. If the vehicle has been operating
under normal driving conditions, pull off the road, stop the vehicle, and turn off
the engine as soon as possible.
See Engine Overheating for more information.
