Buick Enclave: Power Windows. Sun Visors

Buick Enclave 2008-2017 Owners Manual / Keys, Doors, and Windows / Windows / Power Windows. Sun Visors

Power Windows

Leaving children in a vehicle with the keys is dangerous for many reasons. ChildrenWARNING
Leaving children in a vehicle with the keys is dangerous for many reasons. Children or others could be badly injured or even killed.

They could operate the power windows or other controls or even make the vehicle move.

The windows will function and they could be seriously injured or killed if caught in the path of a closing window. Do not leave keys in a vehicle with children.

When there are children in the rear seat use the window lockout button to prevent unintentional operation of the windows.

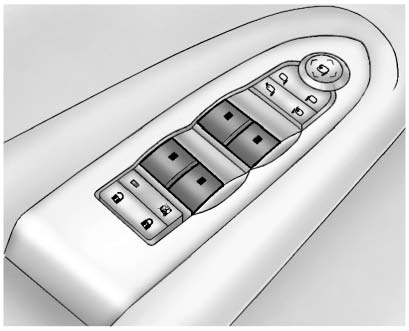

Uplevel Shown, Base Similar

Uplevel Shown, Base Similar

The driver door also has switches that control the passenger and rear windows. The power windows work with the ignition in ACC/ ACCESSORY, ON/RUN or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) .

Press the switch to lower the window. Pull up on the front edge of the switch to raise the window.

Express-Up/Express-Down Windows

► window with the express-up/down feature allows it to be raised or lowered without holding the switch.

Press or pull the window switch fully and release it to activate the express feature. The express mode can be canceled by pressing or pulling the switch.

Programming the Power Windows

If the battery on the vehicle has been recharged, disconnected, or replaced, windows with the express-up feature need to be reprogrammed for this feature to work. To program the window:

1. Close all doors with the ignition in the ACC/ACCESSORY, ON/RUN position, or when Retained Accessory Power (RAP) is active.

See Retained Accessory Power (RAP) .

2. Press and continue to hold the window switch until the window is fully open.
3. Pull up and hold the window switch to close the window.

Continue to hold it briefly after the window is fully closed.

4. Repeat for each window that has the express-up feature.

Anti-Pinch Feature

The anti-pinch feature is on windows with the express-up feature. If an object is in the way of the window as it is express-closing, or in certain weather conditions like severe icing, the window will stop and open to a factory preset position. The window functions normally once the obstruction is removed.

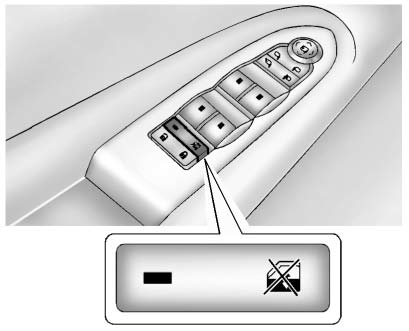

Rear Window Lockout

The rear window lockout feature prevents the rear passenger windows from operating,

The rear window lockout feature prevents the rear passenger windows from operating, except from the driver position.

Press lockout switch. The LED light comes on when activated. to activate the rear window lockout switch. The LED light comes on when activated.
Press switch. again to deactivate the lockout switch.

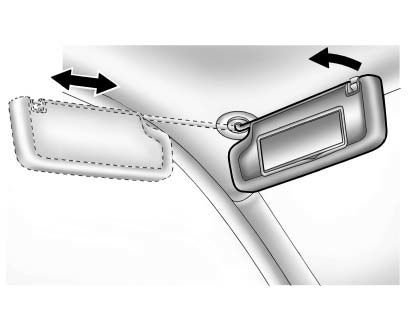

Sun Visors

Pull the sun visor down to block glare. Detach the sun visor from the center

Pull the sun visor down to block glare. Detach the sun visor from the center mount to pivot to the side window, or to extend along the rod, if available.
