Buick Enclave: Power Seat Adjustment. Lumbar Adjustment. Reclining Seatbacks

Buick Enclave 2008-2017 Owners Manual / Seats and Restraints / Front Seats / Power Seat Adjustment. Lumbar Adjustment. Reclining Seatbacks

Power Seat Adjustment

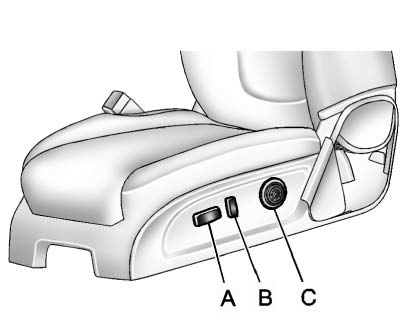

A. Seat Adjustment Control

A. Seat Adjustment Control
B. Reclining Seatback Control
C. Lumbar Adjustment Control

► Move the seat forward or rearward by moving the control (A) forward or rearward.

► Raise or lower the front or rear part of the seat cushion by moving the front or rear of the control (A) up or down.

► Raise or lower the entire seat by moving the control (A) up or down.

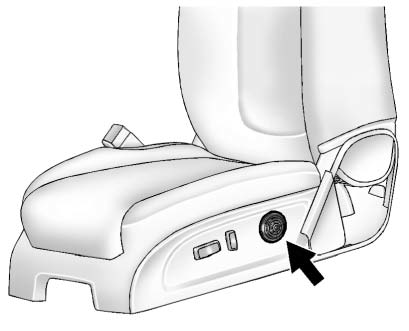

To raise or recline the seatback, tilt the top of the control (B) forward or rearward. See Reclining Seatbacks .

Press the front or rear of the control (C) to increase or decrease lumbar support. See Lumbar Adjustment .

Lumbar Adjustment

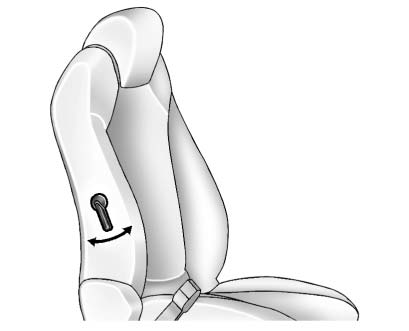

Manual Lumbar





If available, move the handle forward or rearward to increase or decrease lumbar support.

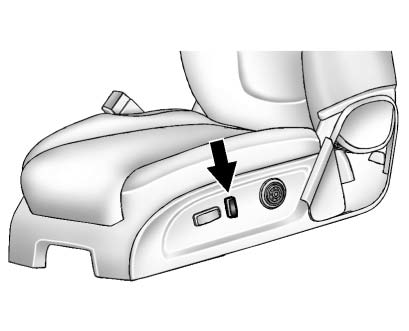

Power Lumbar

If available, press and hold the front or rear of control to increase or decrease

If available, press and hold the front or rear of control to increase or decrease lumbar support.

Release the control when the seatback reaches the desired level of lumbar support.

Reclining Seatbacks

Power Reclining Seatbacks

You can lose control of the vehicle if you try to adjust the seat while the vehicleWARNING
You can lose control of the vehicle if you try to adjust the seat while the vehicle is moving.

The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver seat only when the vehicle is not moving.

To adjust the seatback:

To adjust the seatback:

► Tilt the top of the control rearward to recline.

► Tilt the top of the control forward to raise.

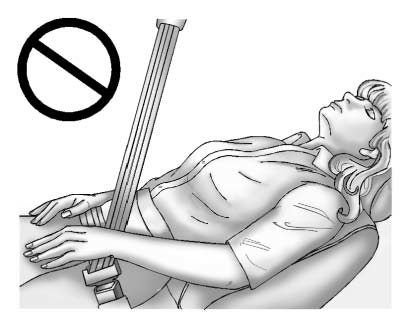

Sitting in a reclined position when the vehicle is in motion can be dangerous.WARNING
Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job when reclined like this.

The shoulder belt cannot do its job because it will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.

The lap belt cannot do its job either. In a crash, the belt could go up over your abdomen.

The belt forces would be there, not at your pelvic bones.

This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the safety belt properly.

Do not have a seatback reclined if the vehicle is moving.

Do not have a seatback reclined if the vehicle is moving.
