Buick Enclave: Description and Operation
REAR DRIVE AXLE DESCRIPTION AND OPERATION

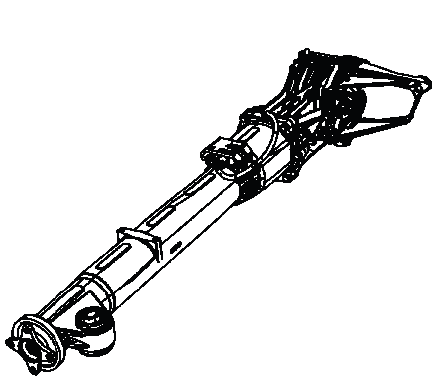

Fig. 51: View Of Rear Drive Axle Assembly
The rear drive axle assembly in this vehicle consists of an aluminum housing
which contains an electric clutch
which is located in the driveline torque tube (for vehicles equipped with all
wheel drive AWD only) and
separate from the rear drive. The differential fluid is only contained in the
rear drive axle portion of the rear
differential assembly.
The clutch assembly for AWD vehicles is serviced separately from the driveline
torque tube assembly. The
clutch control module (CCM) is located on the torque tube housing and is also
serviced separately.
The clutch assembly contains automatic transmission fluid (ATF). There is a seal
that protects the driveline
torque tube from the ATF contained inside the clutch assembly. Another seal
protects the clutch assembly from
gear oil.
The fluid level range for proper rear drive axle assembly operation is 0.8 to
1.0 liter depending on the housing
design (location of the fill/inspection pug). New service replacement units will
be shipped dry (without fluid).
Fill new units with 0.8 liter of GL Synthetic fluid. More importantly, the
minimum fluid level should be even
with the bottom of the fill hole.
The driveline torque tube houses the third section of the propeller shaft for
packaging purposes only. There is one bearing at each end of the torque tube
assembly.
The rear drive axle system operates as follows:
- System distributes torque evenly between the 2 rear wheels.
- The system distributes torque to the rear wheels to enhance traction and
improve vehicle handling
performance.
- The rear differential clutch control assembly contains a main clutch,
pilot clutch, electromagnetic coil,
rear wheel shaft, main cam, pilot cam.
- The clutch control module operates by utilizing a clutch pack for
transferring torque. The engagement
mechanism consists of an electromagnetic coil and armature which modulates
torque through a pilot
clutch and thrust amplification device.
- The rear differential has a micro computer which receives information
from the clutch control module
(CCM).
- The CCM has an internal temperature sensor, which will maintain
consistent and continuous temperature
compensation for torque transfer from -40ºC to +120ºC. When the temperature
of the module is
determined to be beyond its limits, the CCM will temporarily disable the
rear drive system and turn on
the AWD Disabled message. When the temperature of the module is back within
the limits, the CCM will
enable the rear drive system. The temperature sensor and coil are internal
to the rear differential and is
replace as an assembly.
- If the vehicle is being driven very aggressively and or an unexpected
tire size has been used, the AWD
disabled message will be turned on. This should not result in the
replacement of CCM module.
- The AWD disable message will be turned on if the mini-spare tire or a
very small sized tire has been
installed. This should not result in the replacement of CCM module.
- The clutch coil receives current from the CCM which is used to modulate
torque through the use of the
engagement mechanism. The greater the current the greater the torque. The
safe current range is between
0.1-3.0-amps. If the current range is not within those values we have DTCs
that set and the Service AWD
message will appear. The temperature sensor and coil are internal to the
differential and is replace as an
assembly.
- The module uses vehicle speed, steering angle, wheel slip, thermal
compensation and chassis control
intervention to determine current. These are messages on GMLAN from other
modules.
- Replace the CCM, the CCM needs to be configured for the clutch control
calibrations. The connector on
the clutch (that plugs into the CCM) will have a 2 digit value. Use that 2
digit value to program the CCM
using the Tech 2.
- Voltage for our module is between 5-24 volts. We set a low voltage code
but not a high voltage code as
we can withstand a voltage up to 24 volts.
- Displays 2 messages in DIC or IP. Amber AWD Disabled (All Wheel Drive
Off) - DIC Service All
Wheel Drive.
SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS

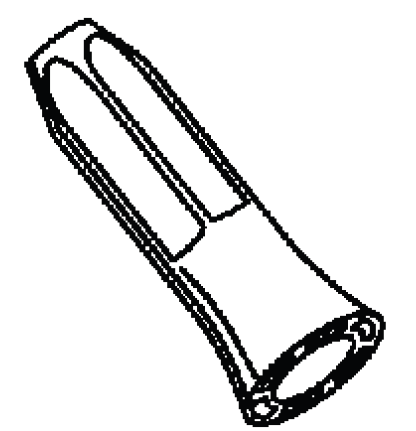

J-44636-1
Pinion Seal Installer

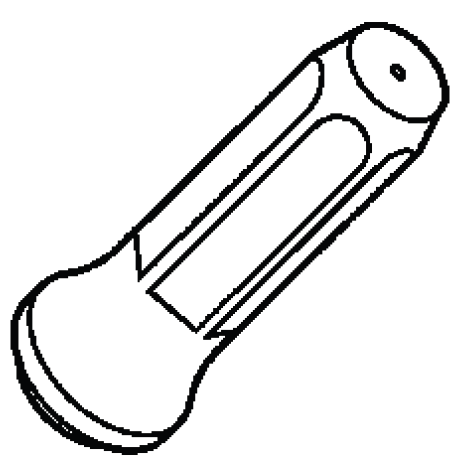

J-44809
Seal Installer

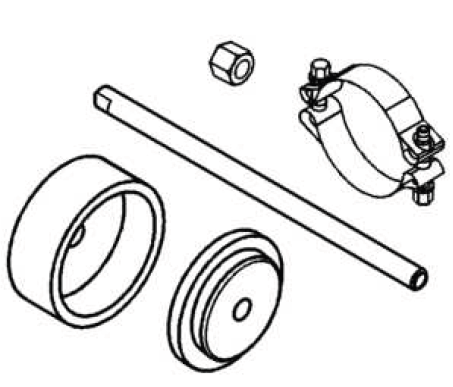

J-45725-A
Frame Bushing
Installer
